उत्पाद विवरण:
|
| प्रतिरूप संख्या।: | 3950K | संपर्क: | संपर्क रहित |
|---|---|---|---|
| उत्पादन में संकेत: | thermistor | उत्पादन प्रक्रिया: | इंजेक्शन |
| सामग्री: | प्रतिरोधी लिथियम क्लोराइड | आईपी रेटिंग: | आईपी65 |
| सिर: | धातु या प्लास्टिक ट्यूब | बी मान: | 3950K 3435K 3977K PT100 |
| नाममात्र प्रतिरोध: | 5k, 8k, 10k, 15k से 100k | B25/50 मूल्य: | 2500 ~ 5000k |
| अपव्यय गुणांक: | ≥0.8mw/ºC | थर्मल काल निरंतर: | ≤25S |
| कार्य तापमान: | -40ºC~+250ºC | मूल्यांकित शक्ति: | 50 मेगावाट |
| तापमान की रेंज: | -50 से 500ºC | ||
| प्रमुखता देना: | NTC thermistor temperature sensor,PT100 platinum resistor thermocouple,J K type thermocouple sensor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | Within working temperature |

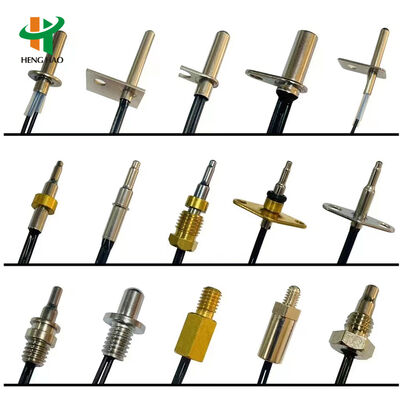

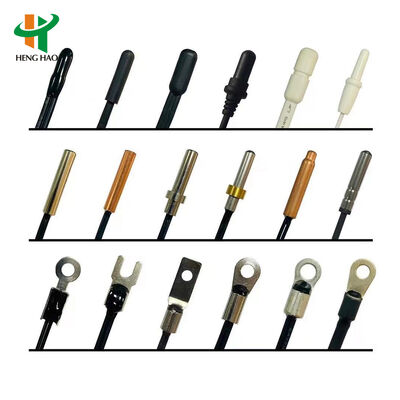

| Case and head | Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request | |
| Terminal | Can be riveted according to the requirements of various terminals | |

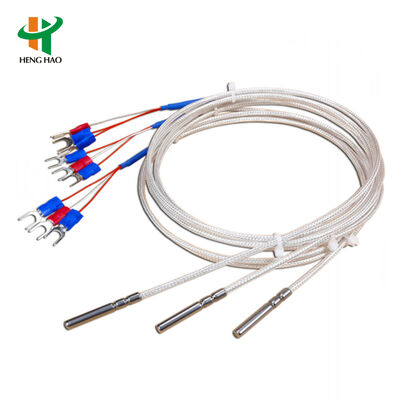

| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |

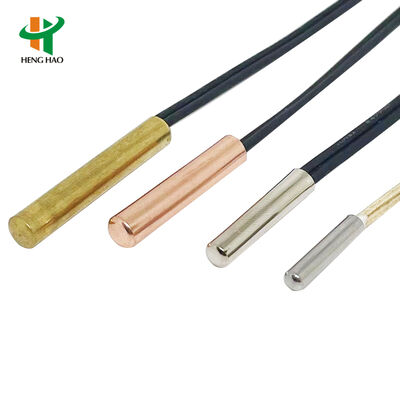

| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe size | 4*30mm, or according to client's request to design |
| Thermal time constant | 0.5S |
| Lead wire options |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC) |
| Diameter | 3mm~16mm |
| Terminal options | Y type, Pin, XH2.54 or according to client's request |
| Level of protection | IP68 |
