Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe

Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe
Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe

बड़ी छवि :  Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe

उत्पाद विवरण: भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1,000
मूल्य: 0.25
संपर्क करें

Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe

वर्णन
नाममात्र प्रतिरोध: 10K सामग्री गुणांक: 3950K
R25 अनुमेय विचरण: ±1,±2,±3,±5,±10% B25/50 मूल्य: 2500 ~ 5000k
B25/50 विचरण: ±1,±2% अपव्यय गुणांक: ≥0.8mw/ºC
थर्मल काल निरंतर: ≤25S कार्य तापमान: -40ºC~+250ºC
मूल्यांकित शक्ति: 50 मेगावाट संपर्क प्रकार: आम तौर पर बंद या सामान्य रूप से खुला
स्विच प्रकार: ऑटो रीसेट या मैनुअल रीसेट DIMENSIONS: 12*16
लीड तार विकल्प: #24 30# 2651, यूएल4411 28#, डबल वायर्ड कंडक्टर बल रीसेट करें: 4~6 एन
दूरी रीसेट करें: ≥20.4मिमी
प्रमुखता देना:

10K NTC temperature sensor probe

,

3950 NTC thermistor sensor

,

NTC thermistor temperature probe

NTC Temperature Sensor 10K 3950 NTC Thermistor Temperature Probe
Product Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Configuration Options

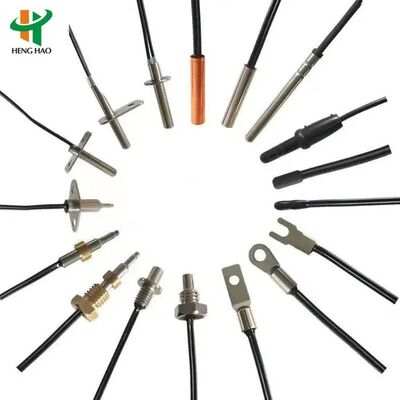

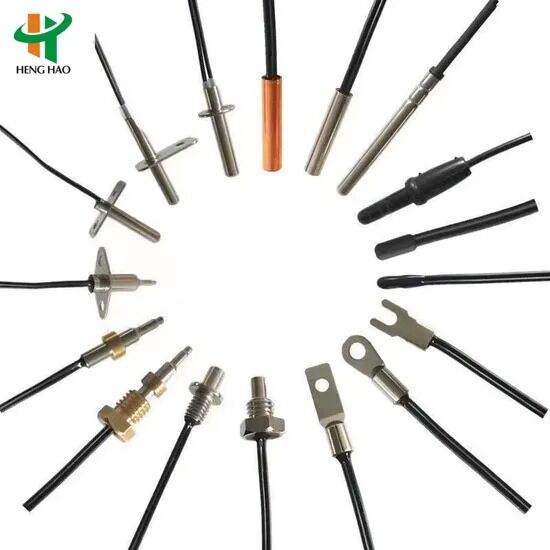

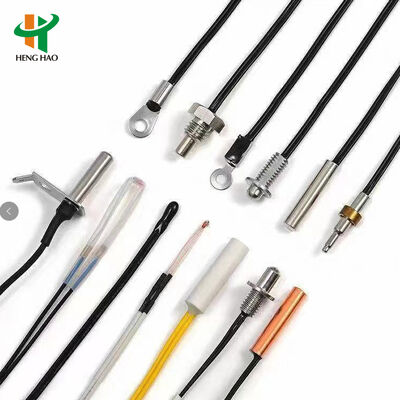

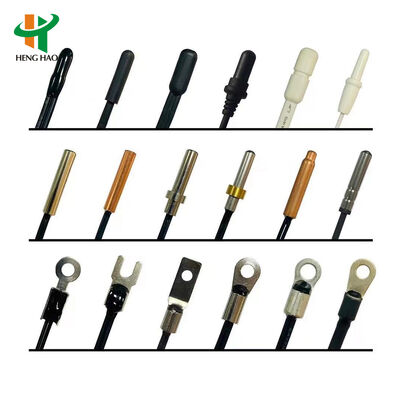

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Product Images
Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe 0 Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe 1 Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe 2
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Temperature Specifications
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20ºC±5ºC 5ºC±5ºC 95ºC±5ºC 80ºC±5ºC 205ºC±5ºC 175ºC±10ºC
-15ºC±5ºC 5ºC±5ºC 100ºC±5ºC 80ºC±10ºC 210ºC±5ºC 180ºC±10ºC
-10ºC±5ºC 5ºC±5ºC 105ºC±5ºC 85ºC±10ºC 215ºC±5ºC 185ºC±10ºC
0ºC±5ºC -10ºC±5ºC 110ºC±5ºC 90ºC±10ºC 220ºC±5ºC 190ºC±10ºC
5ºC±5C -5ºC±5ºC 115ºC±5ºC 95ºC±10ºC 225ºC±5ºC 195ºC±10ºC
10ºC±5ºC 0ºC±5ºC 120ºC±5ºC 100ºC±10ºC 230ºC±5ºC 200ºC±10ºC
15ºC±5ºC 5ºC±5ºC 125ºC±5ºC 105ºC±10ºC 235ºC±5ºC 205ºC±10ºC
20ºC±5ºC 5ºC±5ºC 130ºC±5ºC 110ºC±10ºC 240ºC±5ºC 210ºC±10ºC
25ºC±5ºC 10ºC±5ºC 135ºC±5ºC 115ºC±10ºC 245ºC±5ºC 215ºC±10ºC
30ºC±5ºC 15ºC±5ºC 140ºC±5ºC 120ºC±10ºC 250ºC±5ºC 220ºC±10ºC
Or according to client's request
Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe 3 Ntc Temperature Sensor 10K 3950 Ntc Thermistor Temperature Probe 4
