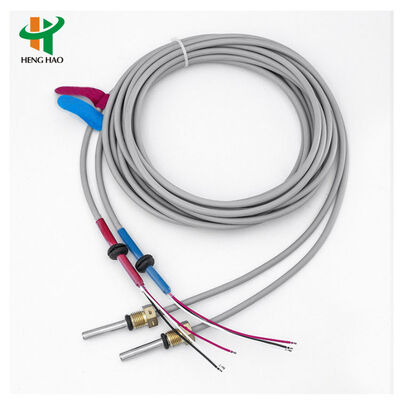

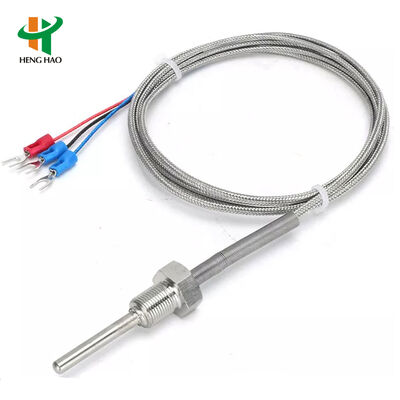

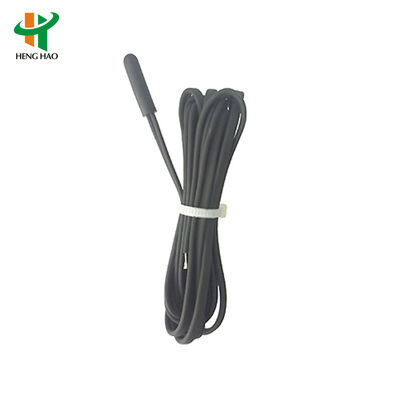

Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe

Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe
Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe

बड़ी छवि :  Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe

उत्पाद विवरण: भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1,000
मूल्य: 0.25
संपर्क करें

Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe

वर्णन
नाममात्र प्रतिरोध: 5k, 8k, 10k, 15k से 100k प्रतिरोध विचरण: ± 1, ± 2, ± 3, ± 5, ± 10
सामग्री गुणांक: 2500 ~ 5000k अपव्यय गुणांक: ≥0.8mw/ºC
थर्मल काल निरंतर: ≤25S कार्य तापमान: -40ºC~+250ºC
मूल्यांकित शक्ति: 50 मेगावाट संपर्क प्रकार: आम तौर पर बंद या सामान्य रूप से खुला
स्विच प्रकार: ऑटो रीसेट या मैनुअल रीसेट DIMENSIONS: 12*16
बल रीसेट करें: 4~6 एन दूरी रीसेट करें: ≥20.4मिमी
खुला तापमान रेंज: -20ºC से 300ºC तापमान सीमा रीसेट करें: -10ºC से 270ºC
लीड तार प्रकार: #24 30# 2651, यूएल4411 28#
प्रमुखता देना:

NTC thermistor temperature sensor 1K

,

PT100 temperature probe 10K

,

50K NTC thermistor probe

NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature

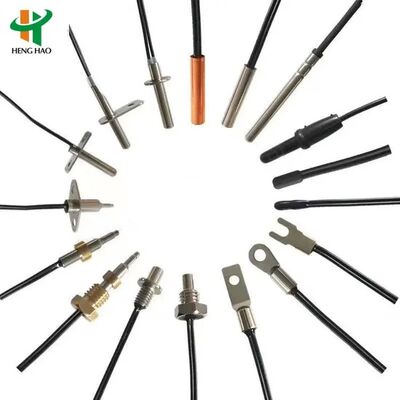

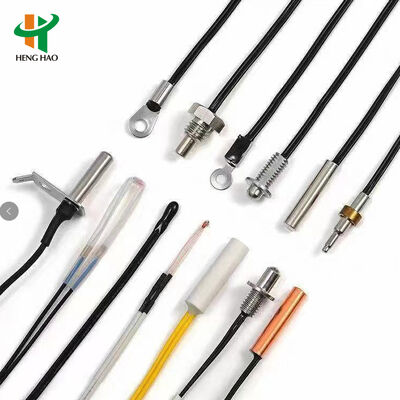

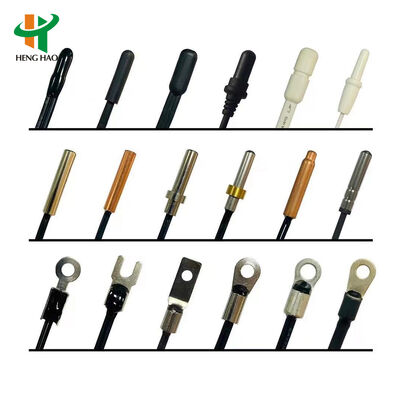

Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal Can be riveted according to the requirements of various terminals
Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe 0 Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe 1 Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe 2
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
KSD301 Difference of Auto Reset Type and Manual Reset Type
Manual Reset Type:
Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset.
Note: 1. This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto Reset Type:
Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
KSD301 Bimetal Thermostat Applications
It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.
Temperature Specifications
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20ºC±5ºC 5ºC±5ºC 95ºC±5ºC 80ºC±5ºC 205ºC±5ºC 175ºC±10ºC
-15ºC±5ºC 5ºC±5ºC 100ºC±5ºC 80ºC±10ºC 210ºC±5ºC 180ºC±10ºC
-10ºC±5ºC 5ºC±5ºC 105ºC±5ºC 85ºC±10ºC 215ºC±5ºC 185ºC±10ºC
0ºC±5ºC -10ºC±5ºC 110ºC±5ºC 90ºC±10ºC 220ºC±5ºC 190ºC±10ºC
5ºC±5C -5ºC±5ºC 115ºC±5ºC 95ºC±10ºC 225ºC±5ºC 195ºC±10ºC
10ºC±5ºC 0ºC±5ºC 120ºC±5ºC 100ºC±10ºC 230ºC±5ºC 200ºC±10ºC
15ºC±5ºC 5ºC±5ºC 125ºC±5ºC 105ºC±10ºC 235ºC±5ºC 205ºC±10ºC
20ºC±5ºC 5ºC±5ºC 130ºC±5ºC 110ºC±10ºC 240ºC±5ºC 210ºC±10ºC
25ºC±5ºC 10ºC±5ºC 135ºC±5ºC 115ºC±10ºC 245ºC±5ºC 215ºC±10ºC
30ºC±5ºC 15ºC±5ºC 140ºC±5ºC 120ºC±10ºC 250ºC±5ºC 220ºC±10ºC
35ºC±5ºC 20ºC±5ºC 145ºC±5ºC 125ºC±10ºC 255ºC±5ºC 225ºC±10ºC
40ºC±5ºC 25ºC±5ºC 150ºC±5ºC 130ºC±10ºC 260ºC±5ºC 230ºC±10ºC
45ºC±5ºC 30ºC±5ºC 155ºC±5ºC 130ºC±10ºC 265ºC±5ºC 235ºC±10ºC
50ºC±5ºC 35ºC±5ºC 160ºC±5ºC 135ºC±10ºC 270ºC±5ºC 240ºC±10ºC
55ºC±5ºC 40ºC±5ºC 165ºC±5ºC 140ºC±10ºC 275ºC±5ºC 245ºC±10ºC
60ºC±5ºC 45ºC±5ºC 170ºC±5ºC 145ºC±10ºC 280ºC±5ºC 250ºC±10ºC
65ºC±5ºC 50ºC±5ºC 175ºC±5ºC 150ºC±10ºC 285ºC±5ºC 255ºC±10ºC
70ºC±5ºC 55ºC±5ºC 180ºC±5ºC 155ºC±10ºC 290ºC±5ºC 260ºC±10ºC
75ºC±5ºC 60ºC±5ºC 185ºC±5ºC 155ºC±10ºC 295ºC±5ºC 265ºC±10ºC
80ºC±5ºC 65ºC±5ºC 190ºC±5ºC 160ºC±10ºC 300ºC±5ºC 270ºC±10ºC
85ºC±5ºC 70ºC±5ºC 195ºC±5ºC 165ºC±10ºC Or according to client's request
90ºC±5ºC 75ºC±5ºC 200ºC±5ºC 170ºC±10ºC
Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe 3 Temperature Sensor 1K, 5K, 10K, 50K, 100K Ntc Thermistor PT100 Temperature Probe 4
